Charging Port A33 A52 A52s A54 A72 A82

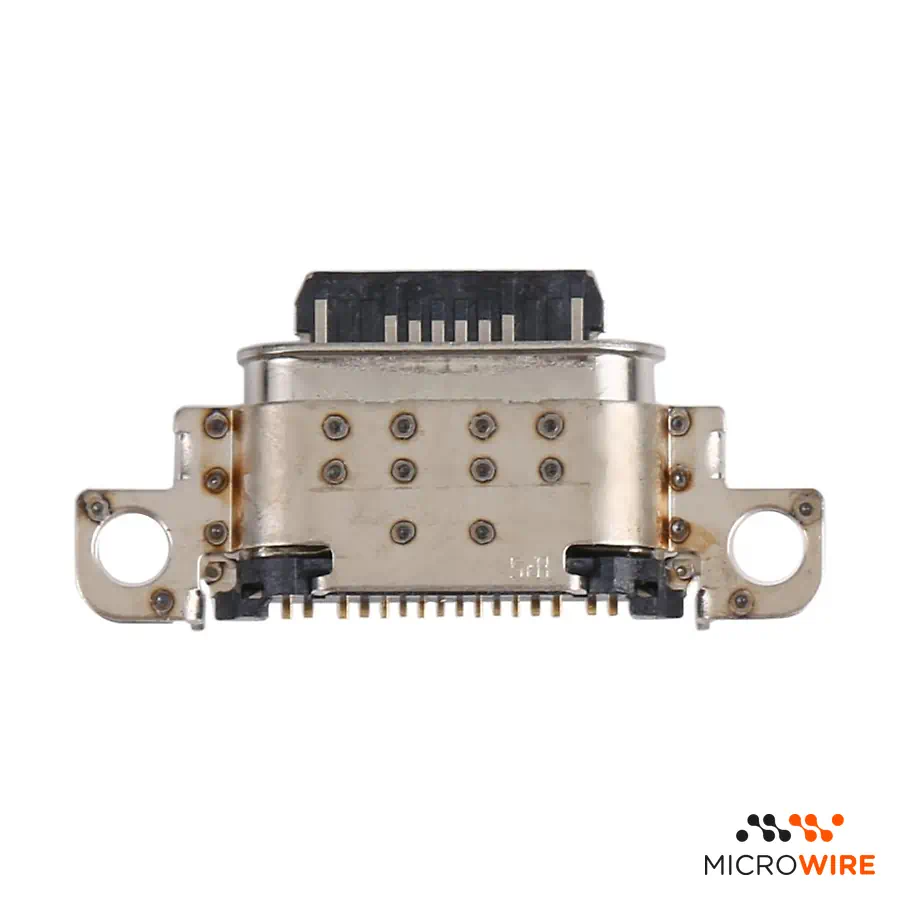

Charging Port for Galaxy A33, A52, A52s, A54, A72 and A82: USB-C Charging Repair

This USB Type-C charging port is intended to replace the damaged port on the sub-board of Samsung Galaxy mobile phones. Installing this charging socket resolves electrical power faults and restores data communication via cable.

Technical Specifications

• Part type: USB-C charging port
• Compatibility: Galaxy A33 5G; Galaxy A52; Galaxy A52s 5G; Galaxy A54 5G; Galaxy A72; Galaxy A82 5G
• Internal reference: MW-CCA52S
• Quality: Premium

When to Replace

• The mobile phone does not detect the charger or fails to charge
• Poor contact when moving the USB-C cable in the port
• Does not establish a data connection to the computer — confirm the diagnosis
• Internal pins of the charging inlet broken or oxidized

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and the microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Difficulty: Advanced (requires micro-soldering equipment and technique for replacement on the auxiliary board)
• Access via removal of the back cover and disassembly of the lower speaker shield
• Apply adequate solder flux and strictly control the hot air station temperature so as not to damage the internal plastic of the connector
• Clean solder residue and inspect the pins under a microscope before assembling the mobile phone

What Distinguishes This Version

This is a Premium quality level part, the highest classification in the compatible replacement segment. It is the suitable option for professional technicians seeking mechanical reliability and secure electrical contact in micro-soldering repairs.

Frequently Asked Questions

Is this charging port compatible with the Galaxy A52 and the Galaxy A52s 5G?
Yes, the USB-C female connector shares the same dimensions and solder pads on the charging board of the Galaxy A52, Galaxy A52s 5G, Galaxy A33 5G, Galaxy A54 5G, Galaxy A72 and Galaxy A82 5G models.

Does the part include the complete lower board or just the loose connector?
This item corresponds solely to the loose female charging socket for soldering onto the existing auxiliary board (sub-board) of the mobile phone.
