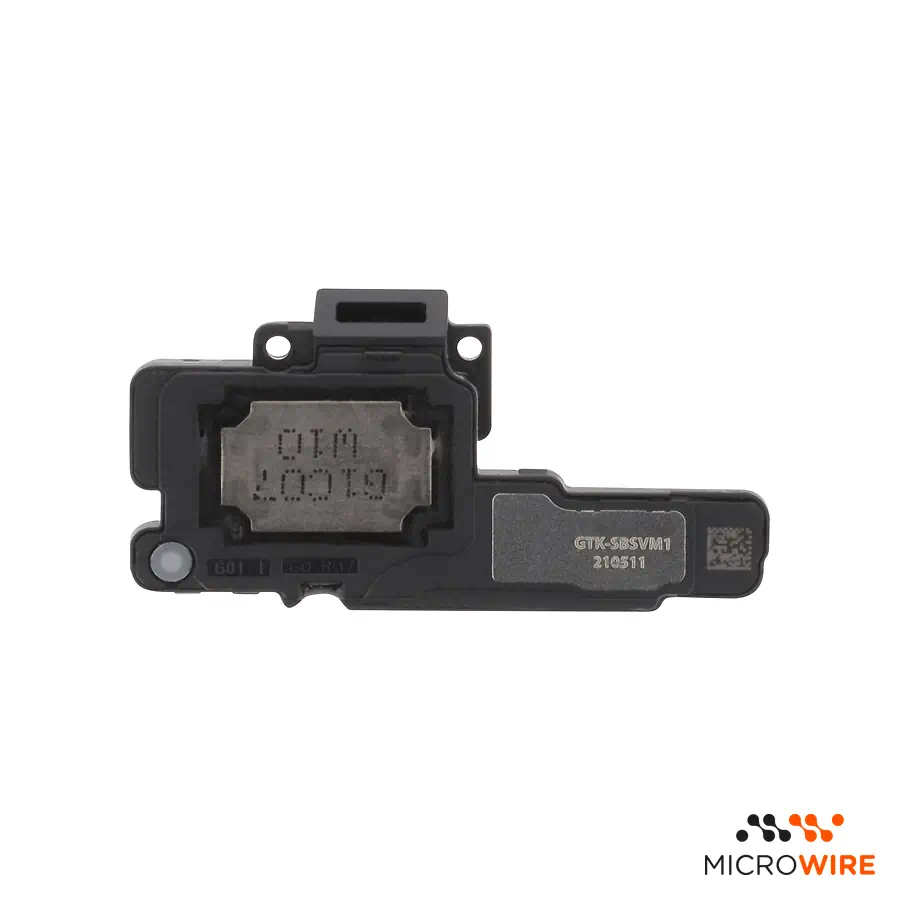

Earpiece Speaker Samsung Galaxy S22+

Call Earpiece Speaker for Samsung Galaxy S22+: Clear Conversation Audio

The earpiece speaker for Samsung Galaxy S22+ is the component responsible for audio reproduction during voice calls and direct communications. This replacement top speaker resolves sound failures, distortion, or lack of audio at the top of the mobile phone. Suitable for technical interventions requiring reliable components and precise contact with the main board.

Technical Specifications

• Part type: Earpiece speaker
• Compatibility: Samsung Galaxy S22+ (SM-S906B, SM-S906B/DS, SM-S906U, SM-S906U1, SM-S906W, SM-S906N, SM-S9060, SM-S906E)
• Quality: Compatible

When to Replace

• You cannot hear the other person's voice during normal phone calls.
• Call sound comes out distorted, with metallic noise or crackling.
• Conversation volume is abnormally low even at maximum level.
• Call audio fails intermittently when moving the phone — confirm diagnosis.

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it permanently. Thus, if there is any issue, return or warranty is handled quickly and simply.
• Installation difficulty: Medium.
• The intervention requires removing the back cover and top shielding with NFC antenna/wireless charging to access the speaker compartment.
• Use suitable adhesive tape to seal the back cover after the procedure, sold separately.
• Check the front mesh for accumulated dirt or debris before completing assembly.

What Distinguishes This Version

This high-end compatible version was selected specifically to ensure correct dimensions and stable electrical contact. It is the suitable option for technicians seeking an economical and effective repair in demanding customer equipment.

Frequently Asked Questions

Is this earpiece compatible with the base Samsung Galaxy S22 or S22 Ultra?
No. This component was designed specifically for the chassis and internal alignment of the Samsung Galaxy S22+ (SM-S906B), differing in dimensions from the other versions in the range.

Does earpiece replacement require soldering?
No. The part makes contact through pressure pins directly on the board contacts, requiring no soldering process.
