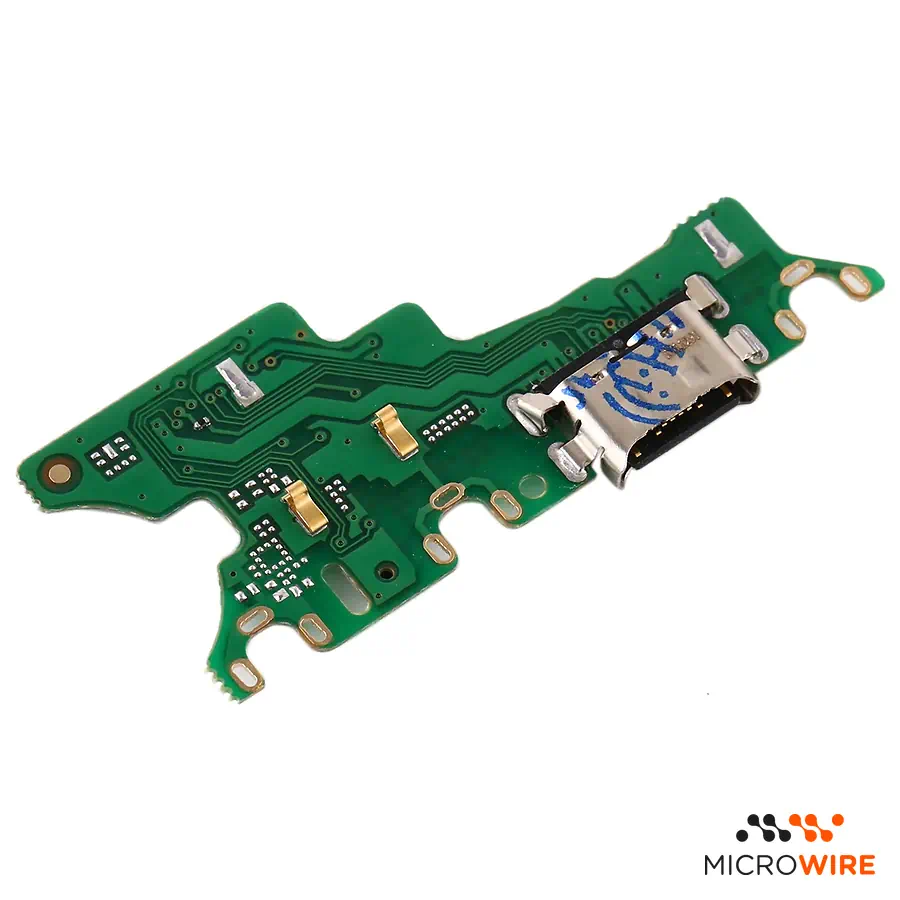

Honor 20 and 20 Pro Charging Port

Charging Port for Honor 20 and Honor 20 Pro: Stable USB-C Connection

This charging port is designed to restore power supply and data transmission in the Honor 20 and Honor 20 Pro. It is the suitable solution to replace the damaged secondary board, resolving issues of poor contact or failures in the USB-C socket.

Technical Specifications

• Part type: USB-C charging connector board
• Compatibility: Honor 20 (YAL-L21, YAL-AL00, YAL-TL00); Honor 20 Pro (YAL-L41, YAL-AL10)
• Quality: Premium

When to Replace

• The USB-C cable has play or detaches easily from the mobile phone
• The mobile phone does not detect the charger or charges intermittently
• The computer does not recognise the equipment through the USB connection
• Failures occur in the bottom microphone during calls — confirm the diagnosis
• The battery does not receive charge even with cable and power adapter working — confirm the diagnosis

Notes for the Technician

• Test before applying: before securing, confirm charging and, if applicable, data transfer and the microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Intervention difficulty: Medium
• Accessing the component requires removing the glass back cover using moderate heat
• Necessary to unscrew and remove the lower speaker plastic shielding to expose the sub-board
• Carefully disconnect the antenna coaxial cable and the main board interconnection flex so as not to damage the contacts
• New adhesive for the back cover sold separately

What Distinguishes This Version

Esta peça de qualidade Premium oferece a gama mais alta disponível no mercado de substituição compatível, garantindo dimensões precisas e alinhamento milimétrico na estrutura do aparelho. É a escolha adequada para técnicos que pretendem uma reparação de confiança e duradoura sem recorrer a peças recondicionadas.

Frequently Asked Questions

Is the same charging board compatible with the Honor 20 and Honor 20 Pro?
Yes, the connector and sub-board layout are shared between both models (YAL-L21 and YAL-L41 series), allowing indistinguishable installation in either of them.

Does the repair require soldering?
No, the replacement is done by swapping the complete sub-board, which connects via pressure connectors and quick-fit cables.
