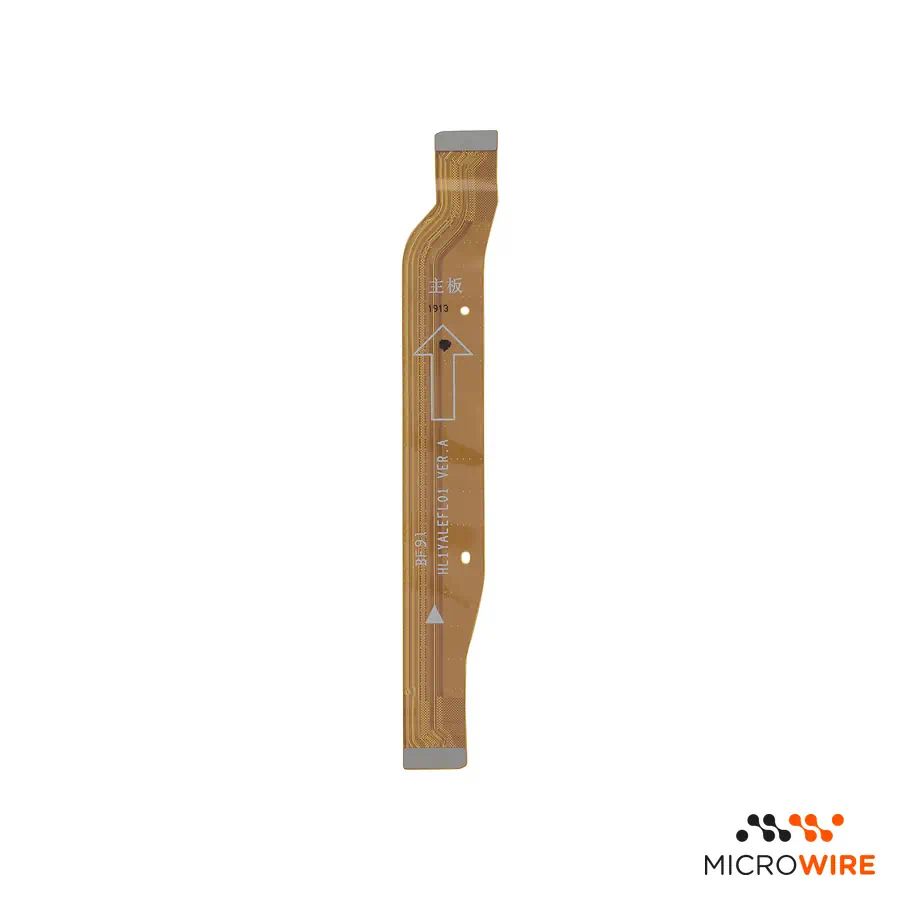

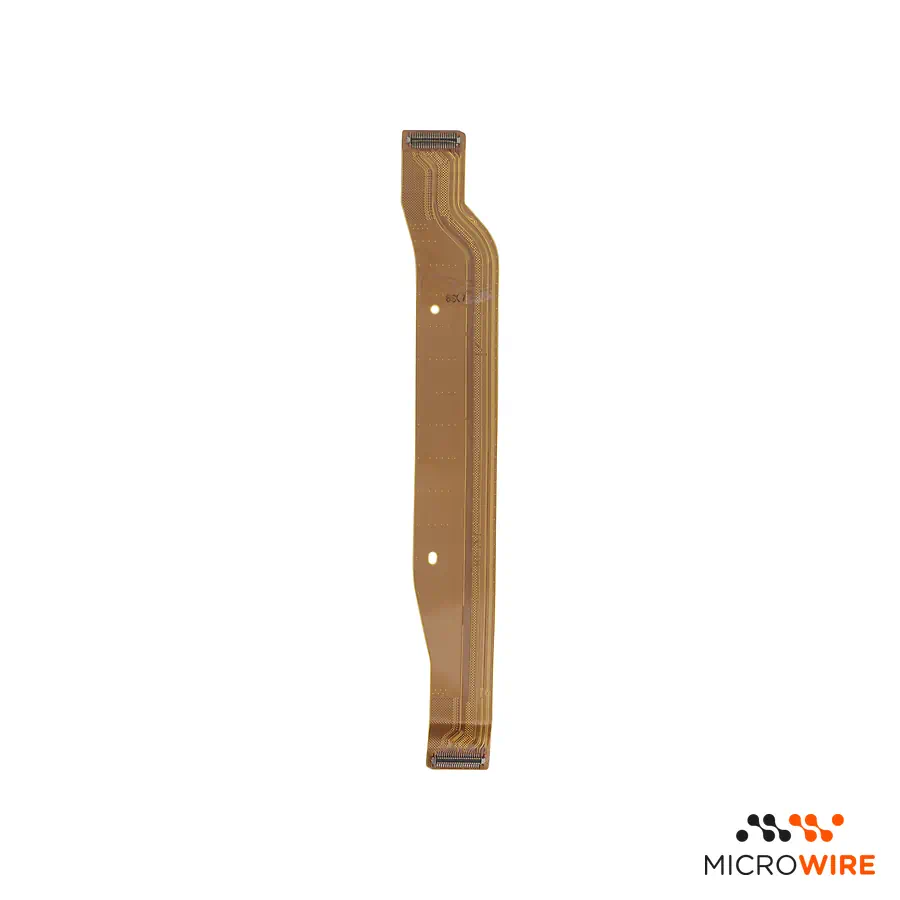

Main Flex Honor 20 & Nova 5T

Main Flex for Honor 20 and Huawei Nova 5T: Board-to-Board Connection

This main flex restores essential communication between the main board and the charging board in the Honor 20 and Huawei Nova 5T. A functional interconnection flex cable ensures power, data, and audio signals flow without loss within the mobile phone.

Technical Specifications

• Part type: Main interconnection flex cable
• Compatibility: Honor 20 (YAL-L21, YAL-AL00, YAL-TL00); Huawei Nova 5T (YAL-L21, YAL-L61, YAL-L71, YAL-AL00)
• Quality: Premium

When to Replace

• The mobile phone does not charge or charging fails intermittently — confirm the diagnosis
• The computer does not recognise the smartphone USB connection
• Bottom microphone or loudspeaker without sound — confirm the diagnosis
• Flex cable torn, creased, or with a damaged connector during a technical intervention

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it permanently. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• Access requires removing the back cover and the plastic protective brackets screwed over the boards.
• Always disconnect the battery before handling or installing the main flex to prevent short circuits.
• Carefully align the pressure connectors (FPC) at both ends before applying force, preventing pin damage.
• Check the fast charge response and bottom speaker communication before gluing the back cover.

What Distinguishes This Version

This Premium version represents the top compatible replacement option on the market, designed to offer signal stability and exact fit in the chassis. It is the indicated solution for professional technicians looking for mechanical and electrical reliability in a lasting repair.

Frequently Asked Questions

Does this flex cable work for both the Honor 20 and Huawei Nova 5T?
Yes, the Honor 20 and Huawei Nova 5T share the same internal structure and connector architecture, making the part perfectly compatible with both models.

Does replacing the main flex solve charging problems?
Yes, provided the power failure originates in the damaged interconnection ribbon and not directly in the secondary board USB port or the motherboard circuit.
