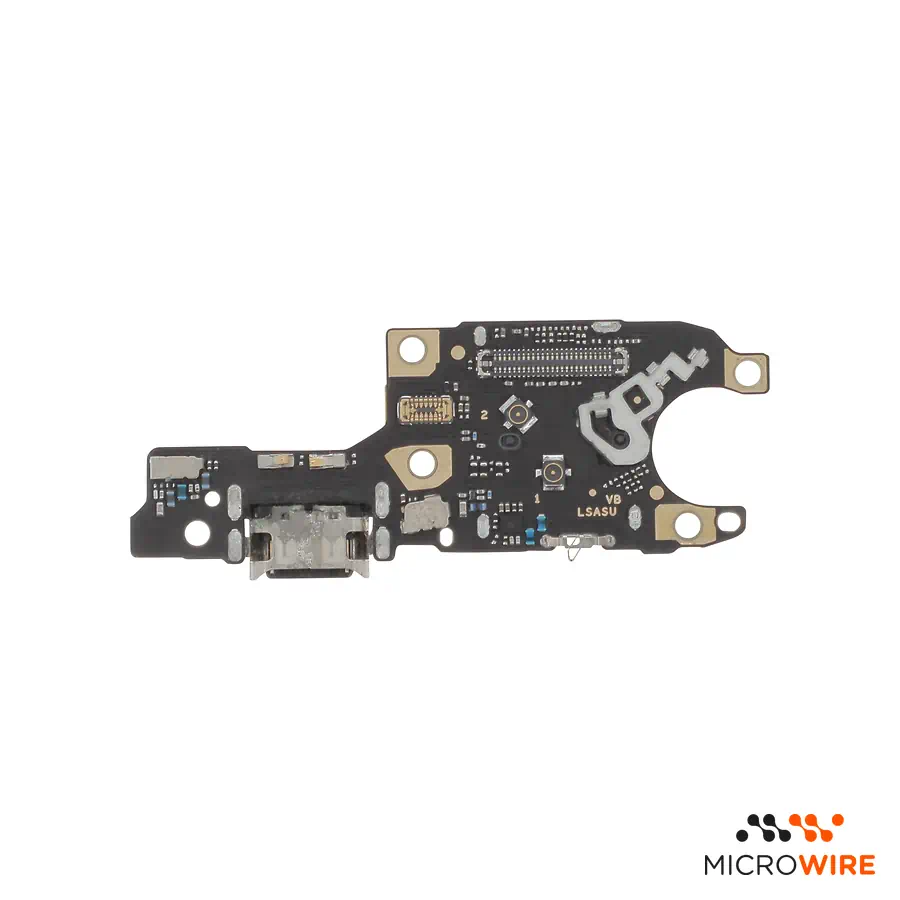

Honor 70 Charging Port

Honor 70 Charging Port: Connection and Charging Replacement

This charging port for the Honor 70 restores stable charging and data connection to the phone. It replaces the damaged or loose charging connector, returning the correct electrical contact to the lower circuit.

Technical Specifications

• Part type: Board with USB-C charging connector
• Compatibility: Honor 70 (FNE-AN00)
• Quality: Premium

When to Replace

• The USB cable does not fit firmly or disconnects easily.
• The phone does not detect the charger or charges intermittently.
• Failures in file transfer when connected to the computer via USB.
• The caller cannot hear your voice during calls — confirm the diagnosis.

Notes for the Technician

• Test before fitting: before fixing, confirm charging and, where applicable, data transfer and the microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Repair difficulty: Medium.
• The intervention requires removing the back cover using moderate heat and careful peeling.
• It is recommended to disconnect the battery before unplugging the lower board interconnect flex.
• Check the alignment of the USB-C connector seal with the frame opening to maintain the correct outer fit.
• New adhesive for closing the back cover sold separately.

What Distinguishes This Version

This is a Premium quality component, the top line in the compatible replacement parts segment. It is the suitable option for technicians who want a reliable installation without compromising the repair budget.

Frequently Asked Questions

Does this lower charging board include the main call microphone?
Yes, the board integrates the USB-C connector and the lower call microphone of the Honor 70.

Is it necessary to solder any component to install this part?
No. The part connects to the mainboard via pressure connectors (FPC), without the need for micro-soldering.
