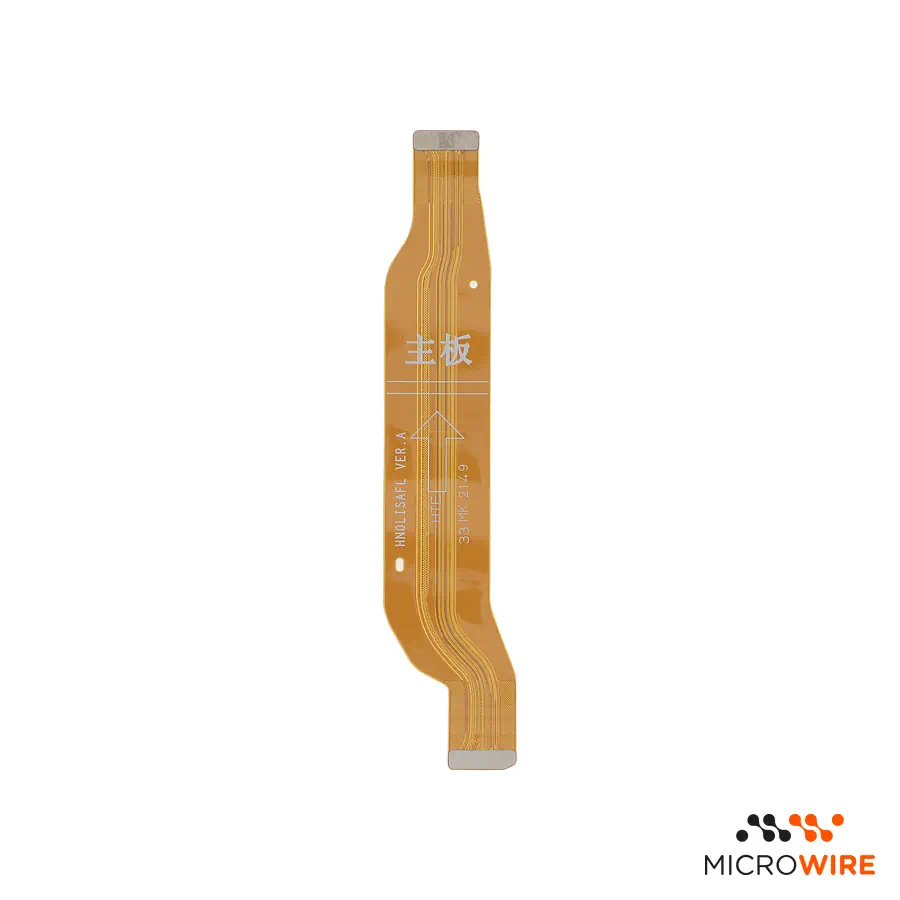

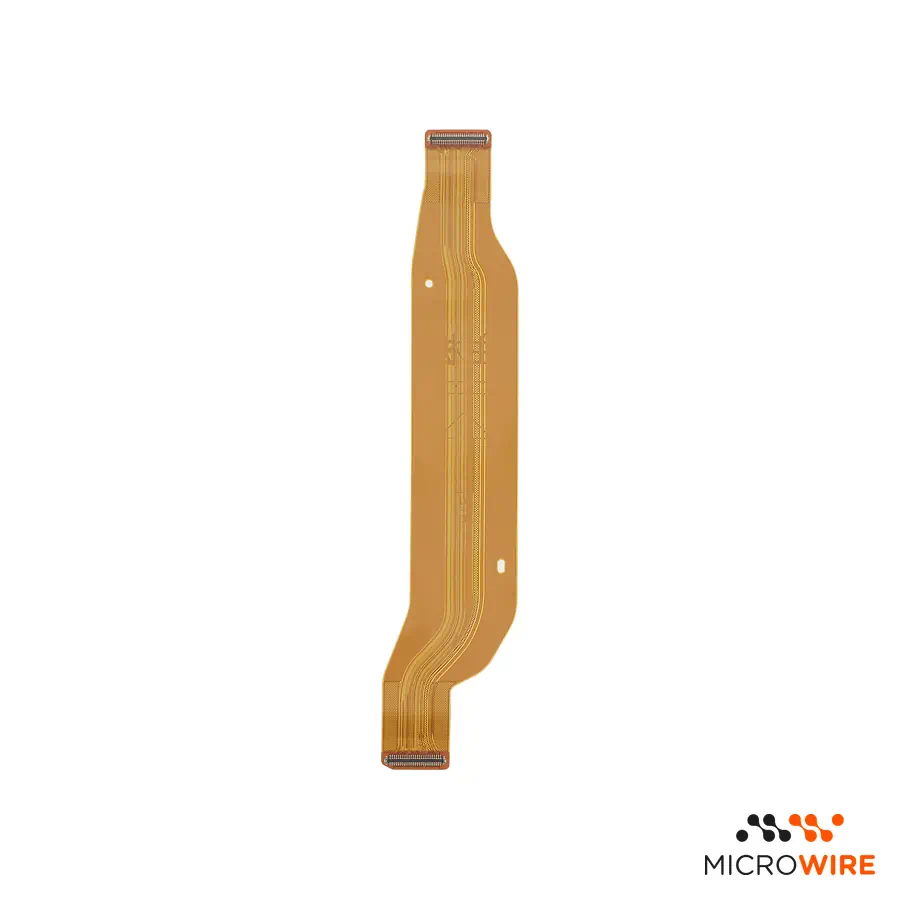

Honor 70 Main Flex

Main Flex for Honor 70: Stable Connection Between Boards

The main flex cable for Honor 70 re-establishes the vital communication between the main board and the charging board. This interconnection cable ensures the correct transmission of current and data between the internal components of the mobile phone.

Technical Specifications

• Part type: Main connection flex
• Compatibility: Honor 70 (FNE-AN00)
• Quality: Premium

When to Replace

• The mobile phone does not charge or shows intermittent charging — confirm the diagnosis.
• Bottom microphone or loudspeaker emit no sound after a drop or maintenance.
• No network signal or constant loss of coverage — confirm the diagnosis.
• Interconnection cable creased, torn, or with damaged traces during disassembly.

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it permanently. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Installation difficulty: Medium.
• Access the interior by carefully removing the back cover using moderate heat.
• Disconnect the battery before handling or installing the main flex to prevent short circuits.
• Precisely align the FPC connectors on both boards without forcing the contact pins.

What Distinguishes This Version

Esta peça de qualidade Premium offers the highest range in the aftermarket for a rigorous and reliable repair. It is the indicated choice for technicians seeking to restore equipment functions with mechanical precision.

Frequently Asked Questions

Does this flex cable solve charging issues on the Honor 70?
Yes, provided the fault lies in the power conduction path between the secondary board and the motherboard, and not in the USB-C port itself.

Is it necessary to solder this main flex during repair?
No, the part uses pressure connectors (FPC) that snap directly onto the mobile phone boards without the need for soldering.
