Honor Magic 5 Pro Charging Port

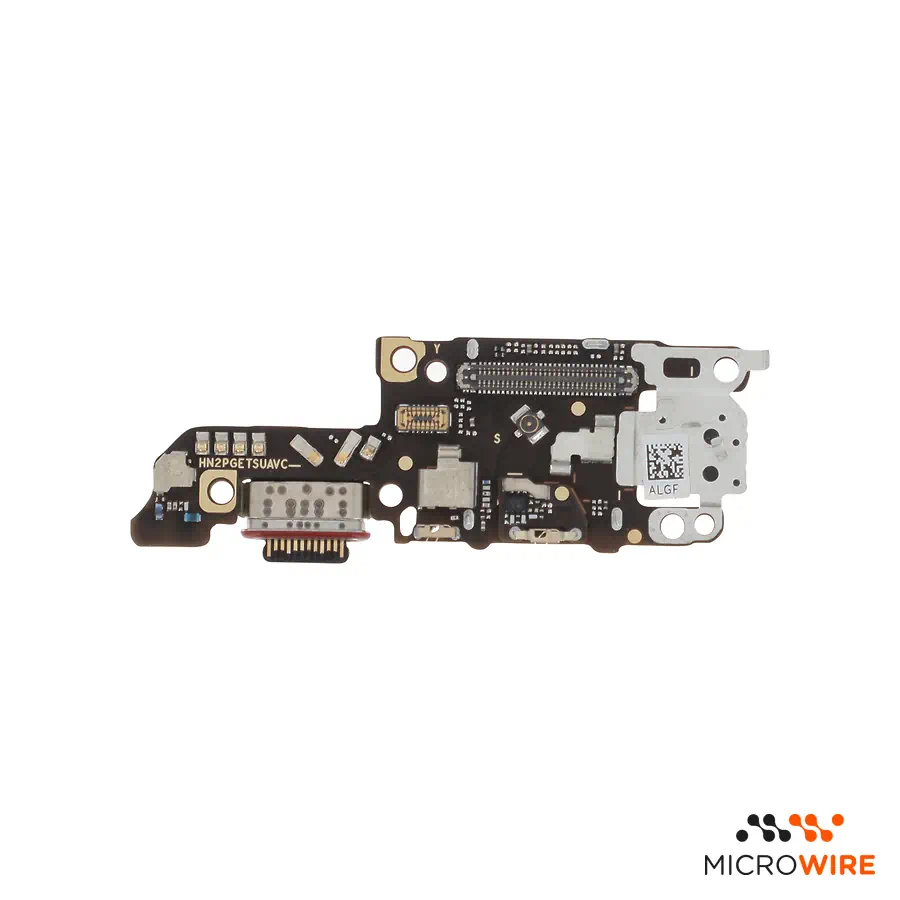

Honor Magic 5 Pro Charging Port: USB-C Connector and Sub Board

The Honor Magic 5 Pro charging port is the replacement component indicated to repair charging failures and data transfer issues. This charging board restores the physical cable connection, allowing you to connect the mobile phone to the charger with stability and safety.

Technical Specifications

• Part type: Charging Port
• Compatibility: Honor Magic 5 Pro (PGT-AN10, PGT-N19)
• Quality: Premium

When to Replace

• The mobile phone does not detect the charger or does not start charging — confirm the diagnosis
• Poor contact when plugging in the USB-C cable, making it necessary to adjust the position of the plug
• The computer does not recognise the device during file transfer
• Internal pins of the USB-C connector broken, bent or oxidised

Notes for the Technician

• Test before applying: before fixing, confirm the charging and, if applicable, the data transfer and microphone. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• The intervention requires removing the back cover using moderate heat and new adhesive on the closure
• Always disconnect the battery before handling or unplugging the flex cable of the charging board
• Dismantle the bottom loudspeaker to have direct and safe access to the sub board
• Check the connection of the antenna coaxial cables and the interconnection flex before final assembly

What Distinguishes This Version

This is a Premium quality part, the highest range available in the compatible replacement market. It is the ideal option for professional technicians looking for a precise fit and a reliable repair.

Frequently Asked Questions

Does replacing the charging port solve charging problems on the Honor Magic 5 Pro?
Yes, if the problem is located in the physical USB-C connector or the respective sub board. If the anomaly persists after replacement, the fault may be in the interconnection cable, the battery or the main board charging management circuit.

Is it necessary to solder to install this part?
No. The part is supplied in modular sub board format, connecting directly to the motherboard via pressure connectors (FPC) and coaxial cables.
