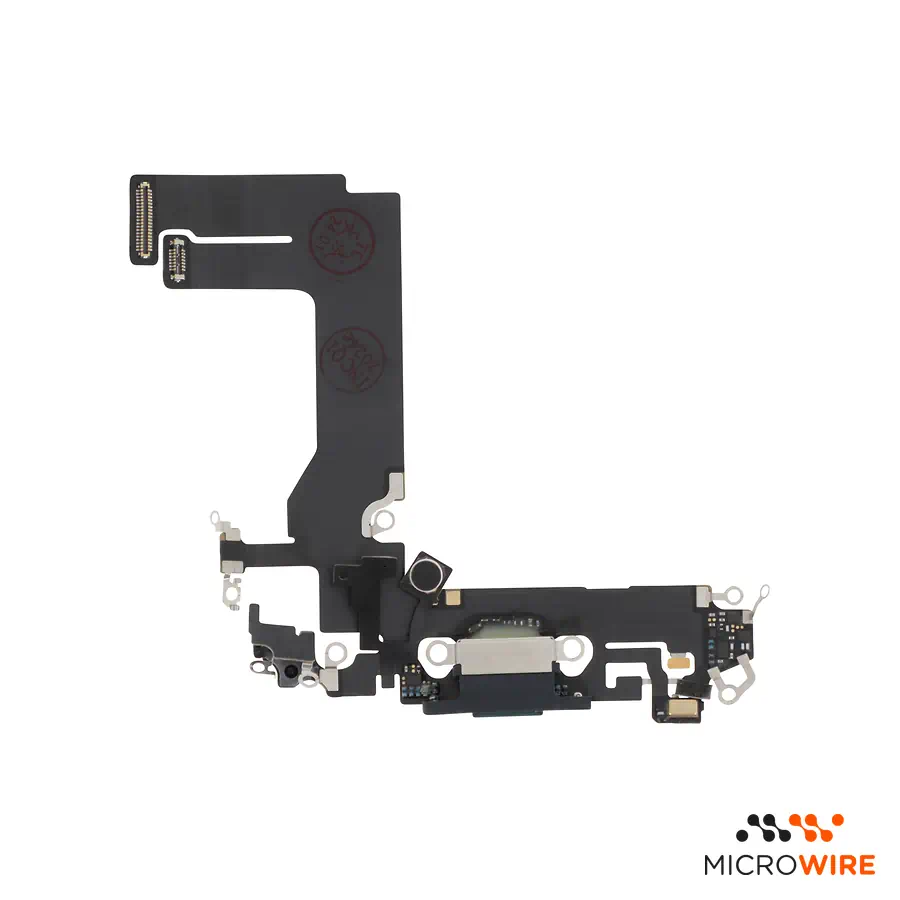

iPhone 13 Mini Charging Port Black

Charging Port for iPhone 13 Mini: Lightning Connector and Microphone

The charging port for the iPhone 13 mini restores data transfer and stable power supply to your mobile phone. This is an original Apple part, consisting of the flexible Lightning connector and integrated communication microphone. This solution restores full functionality to the bottom charging and audio input.

Technical Specifications

• Part type: Lightning charging connector with microphone
• Compatibility: iPhone 13 mini (A2481, A2626, A2628, A2629, A2630)
• Internal reference: PC-I13M-PR
• Colour: Black
• Quality: Original — Pulled

When to Replace

• The Lightning cable does not click in firmly or feels loose
• The device does not recognise the computer connection
• Intermittent charging requiring you to position the cable at specific angles
• The bottom microphone does not capture your voice during calls — confirm the diagnosis
• The phone does not detect any connected charger — confirm the diagnosis

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm it works before fixing or gluing it down permanently. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Installation difficulty: Advanced.
• The intervention requires prior removal of the screen and disassembly of the bottom speaker and Taptic Engine motor for full access to the flex.
• The flexible module is glued to the chassis base; apply gentle heat to detach without tearing the conductive tracks.
• Fixing adhesive or water-resistant sealing adhesive is sold separately.
• Check the microphone sound capture and cable data transmission before completing the final assembly.

What Distinguishes This Version

This part was removed from another mobile phone of the same model, strictly maintaining the geometry and fit intended by the brand. It is the recommended choice for professional technicians and demanding users who want to maintain assembly specifications without dimensional deviations.

Frequently Asked Questions

Is this charging port compatible with the standard iPhone 13?

No. The chassis dimensions and flexible cable length are different, making this part exclusive to the iPhone 13 mini.

The phone does not charge; is the fault guaranteed to be this part?

Not necessarily. Charging failures may originate from the mainboard power circuit, the battery or the cable itself — always confirm the electrical diagnosis.

Each component is tested by Micro Wire before shipping, with fast dispatch from Portugal. If you do not want to repair it, we can do it for you.
