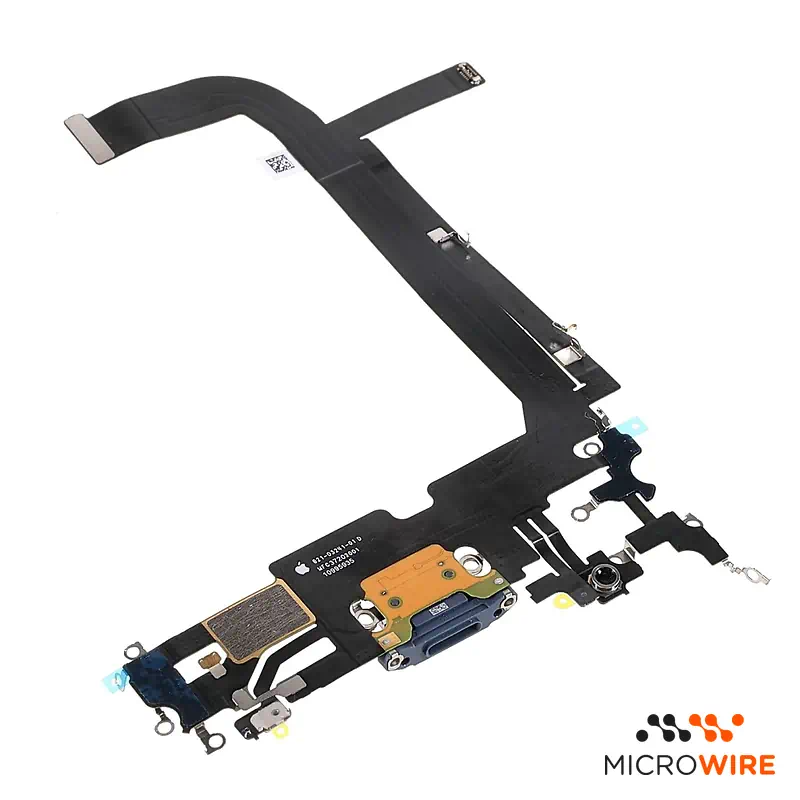

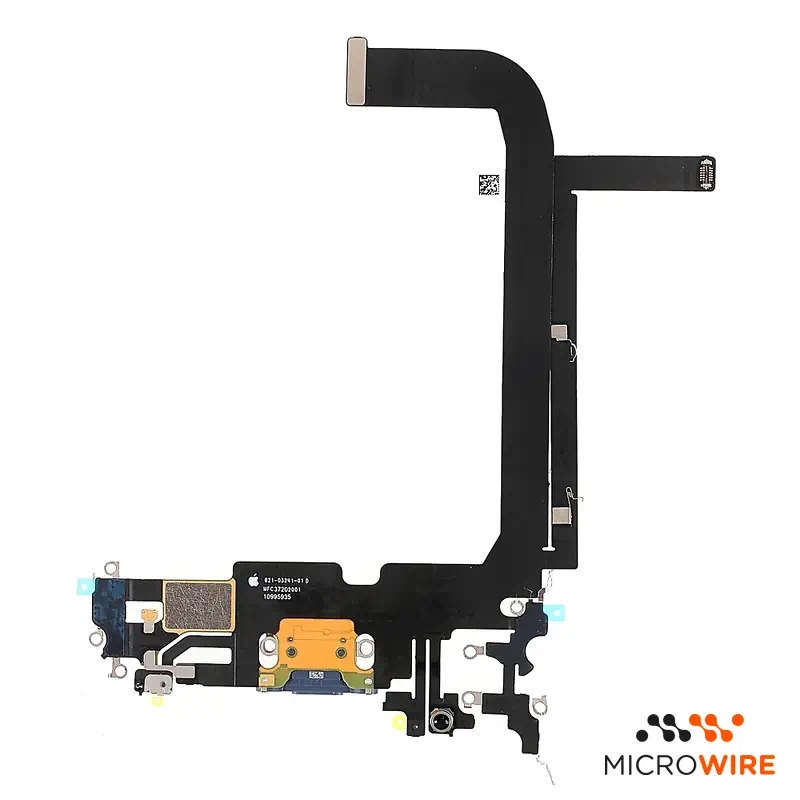

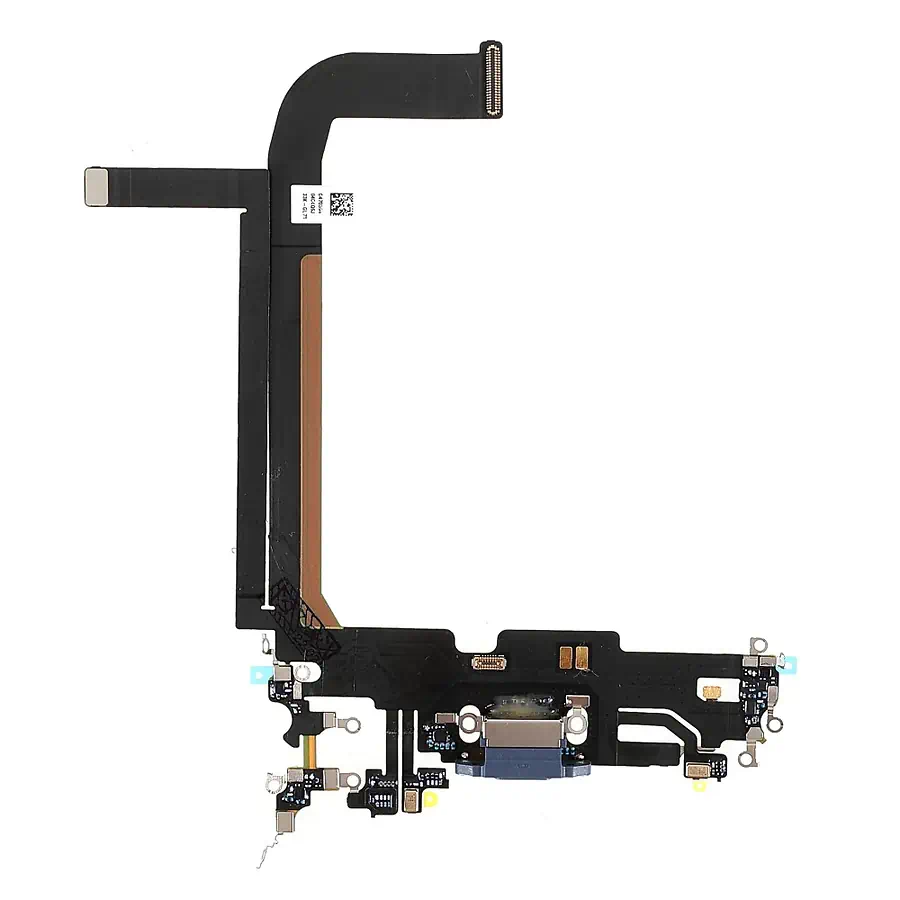

iPhone 13 Pro Max Charging Port Blue

Charging Port for iPhone 13 Pro Max: Stable Connection and Fast Charging

Esta charging port has been designed to restore power and data transfer on your iPhone 13 Pro Max. This is a genuine Apple part, ideal for replacing a damaged or loose Lightning connector.

Technical Specifications

• Part type: Charge and data connector
• Compatibility: iPhone 13 Pro Max (A2484, A2641, A2643, A2644, A2645)
• Reference: PC-I13PM-AZ
• Colour: Blue
• Quality: Original — Pulled

When to Replace

• The phone does not recognise the Lightning cable or does not start charging
• Poor contact when plugging in, forcing you to bend the cable
• The computer does not detect the equipment via USB
• Voice capture failures in calls in the lower area — confirm the diagnosis
• Moisture, corrosion or accumulated dirt inside the charging input

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before securing or gluing it definitively. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Intervention difficulty: Advanced.
• Opening via the front screen, requiring shields to be unscrewed and the lower speaker and haptic motor assembly to be removed.
• It is recommended to use new adhesive when sealing the chassis (sold separately).
• Disconnect the battery before detaching the flexible connectors from the logic board to prevent short circuits due to ESD.
• Perform the charging test, call microphone and USB connection test before definitively gluing the screen.

What Distinguishes This Version

This pulled version maintains full conformity of factory dimensions and electrical contacts. It is the recommended option for technicians looking for reliability without compromising the physical tolerances of the chassis.

Frequently Asked Questions

Does this charging port fit the standard iPhone 13 Pro?

No. The geometry and fixing points of the connector are specific to the iPhone 13 Pro Max and are not compatible with other models.

The phone does not charge; could it be a fault on the logic board?

Yes. If replacing the charging port does not resolve the issue, the anomaly may be in the power management integrated circuit — confirm the diagnosis with a multimeter.

Item tested by Micro Wire before dispatch with fast dispatch from Portugal. If you do not want to repair it, we can do it for you.
