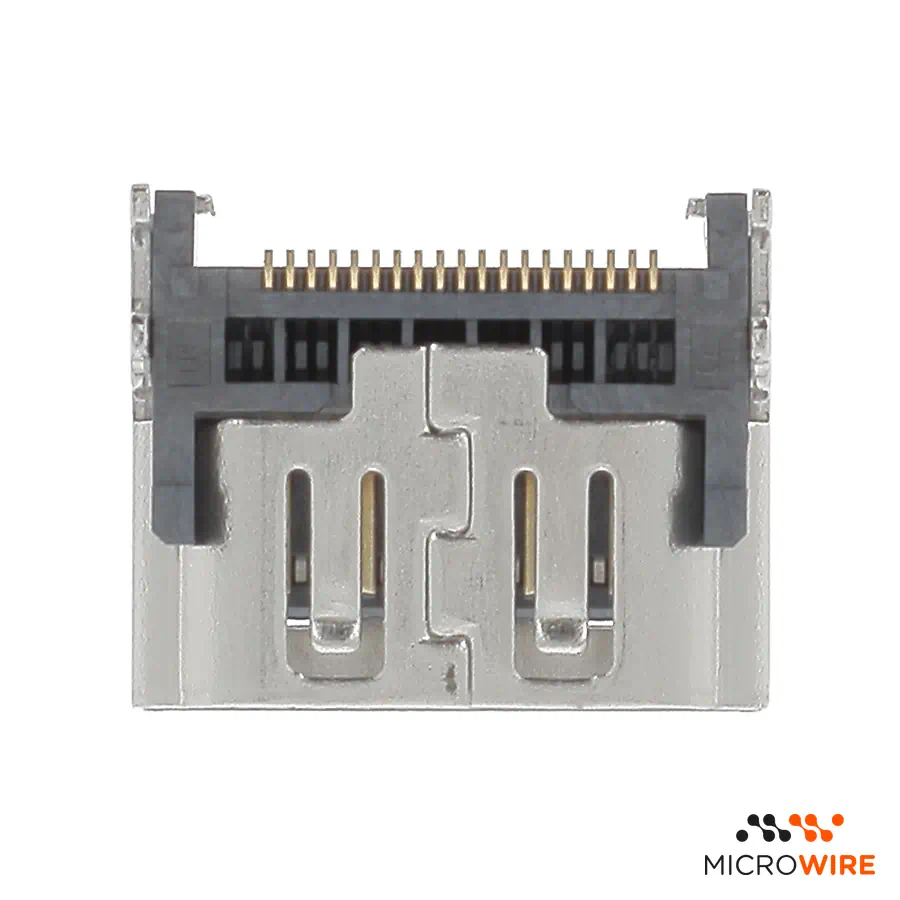

PlayStation 5 HDMI Port

HDMI Port for PlayStation 5: Stable Video and Audio Connection

The HDMI port for PlayStation 5 is the component responsible for outputting video and audio signals from the console to the television or monitor. This HDMI connector replaces entries damaged by cable pulls, drops, or bent pins, restoring correct image transmission. Essential part for recovering consoles with signal problems on PlayStation 5, PlayStation 5 Slim, and PlayStation 5 Pro.

Technical Specifications

• Part type: HDMI port
• Compatibility: PlayStation 5
• Reference: MW-PC-PS5HDMI
• Quality: OEM

When to Replace

• The console turns on (steady white light) but the television indicates "no signal" — confirm diagnosis.
• Internal pins of the HDMI connector visibly broken, bent, or pushed back.
• Image with artefacts, flickering, or intermittent signal loss when moving the HDMI cable.
• Physical difficulty fitting the HDMI cable plug into the console.

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm it works before fixing or gluing it definitively. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Advanced (requires hot air station and professional soldering iron).
• Requires complete disassembly of the console, including metal shielding plates, heatsink, and liquid metal (APU).
• Pay special attention not to disperse the liquid metal or damage the small SMD components adjacent to the port pads.
• Carefully clean holes and pads with desoldering braid and use appropriate solder flux before seating the new port.
• Check continuity and absence of short circuits between all pins with the multimeter before total reassembly.

What Distinguishes This Version

This port features rigorous dimensions and mounting tolerances for precise seating on the mainboard. It is the indicated choice for micro-soldering technicians performing professional console repairs.

Frequently Asked Questions

Is this HDMI port compatible with Slim and Pro models?
Yes, this connector is compatible with the standard PlayStation 5, PlayStation 5 Slim, and PlayStation 5 Pro.

Does the repair require soldering?
Yes, replacing the HDMI port is done directly on the motherboard via micro-soldering with hot air.
