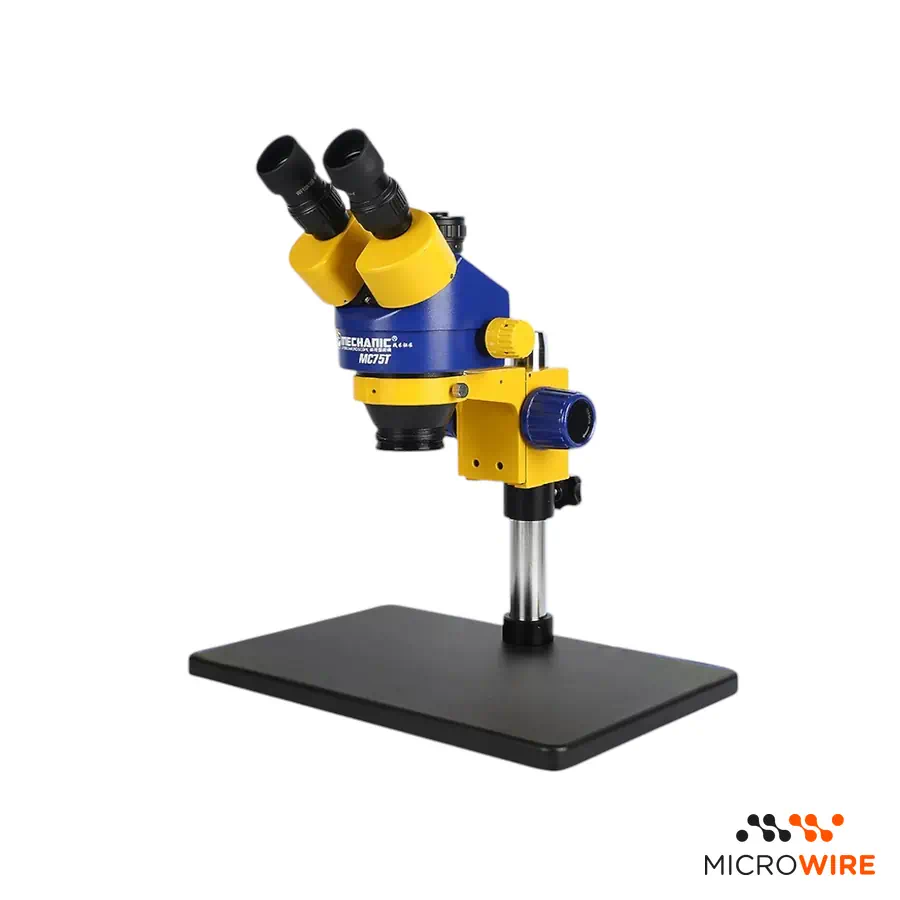

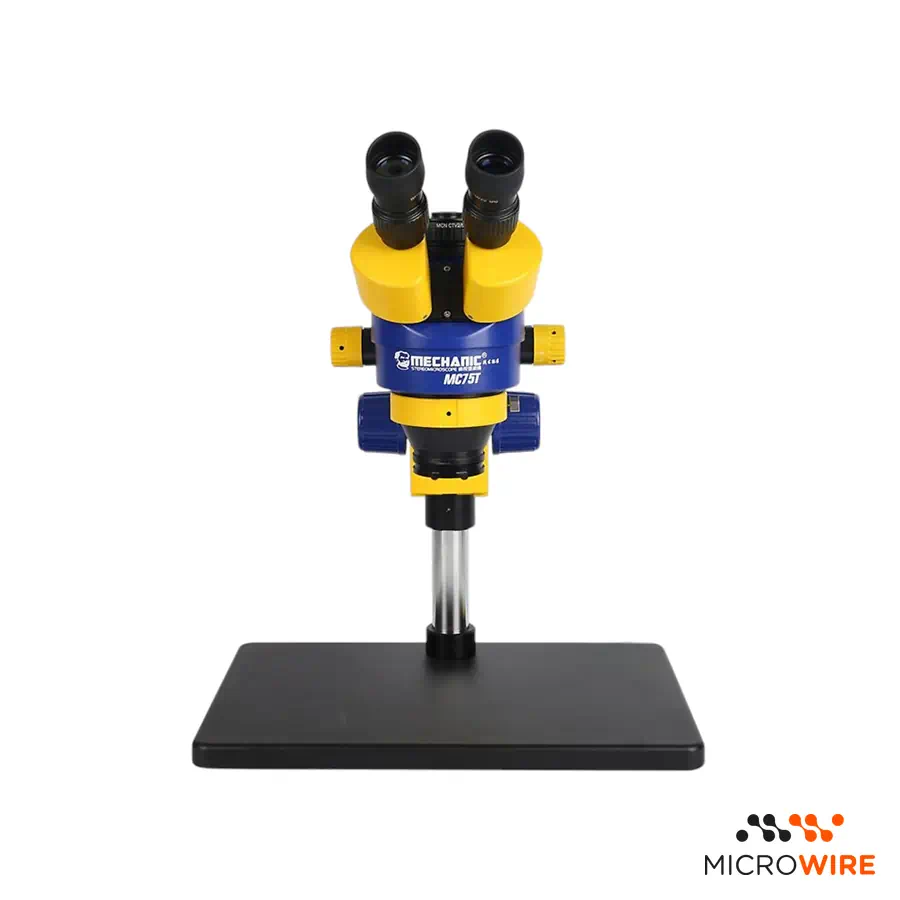

Trinocular Microscope Mechanic MC75T-B3

Precision Magnification for Electronic Repair: The MC75T-B3 Microscope

The Mechanic MC75T-B3 Trinocular Microscope is the ultimate tool for complex diagnostics and repairs on motherboards and other microelectronic components. Designed for the professional technician, it offers a sharp and clear stereoscopic image with a wide field of view, allowing precise work on SMD soldering, circuit inspection, and data recovery. Its robust construction and high-quality optics ensure reliability and durability for intensive use on the workbench.

Technical Specifications

• Magnification: Continuous zoom from 7X to 45X
• Eyepieces: Wide field WF10X / 20mm
• Optical Head: Trinocular, inclined at 45° and rotatable 360°
• Working Distance: Approx. 100mm (standard)
• Base: High-stability B3 metal stand
• Video Output: Dedicated camera port with C-Mount adapter
• Focusing: Bilateral macrometric adjustment with tension control
• Illumination: Compatible with LED ring lights (not included)

What Distinguishes This Model

The MC75T-B3 stands out for its balanced configuration, combining the versatility of the trinocular head with the superior stability of the B3 base. Unlike models with simpler bases, the B3 offers a wide and heavy working platform, minimizing vibrations and ensuring that the focus remains stable during delicate manipulations. The dedicated trinocular port allows the connection of a digital camera without interrupting the view through the eyepieces, essential for documentation, training, or real-time image sharing.

Usage / Installation Tips

To achieve maximum performance, ensure the microscope is on a level and stable surface. Calibrate the interpupillary distance and diopter adjustment on both eyepieces for comfortable, fatigue-free viewing. Use an LED ring light with a dimmer to control intensity and avoid unwanted reflections on metallic components, significantly improving contrast and detail visibility.

Frequently Asked Questions

Is this microscope suitable for mobile phone repair?

Yes, it is ideal. The 7X to 45X magnification and 100mm working distance are perfect for comfortably working on motherboards of mobile phones, tablets, and other compact electronic devices.

What is the difference between a binocular and a trinocular microscope?

A trinocular microscope, like the MC75T-B3, has a third optical port (in addition to the two eyepieces) specifically for attaching a camera. This allows simultaneous viewing and recording of digital images with direct observation, which a binocular model does not allow.

Elevate the quality of your repairs with the optical precision that only professional equipment can offer. Add the Mechanic MC75T-B3 to your workbench, with stock available for immediate dispatch from Portugal.
