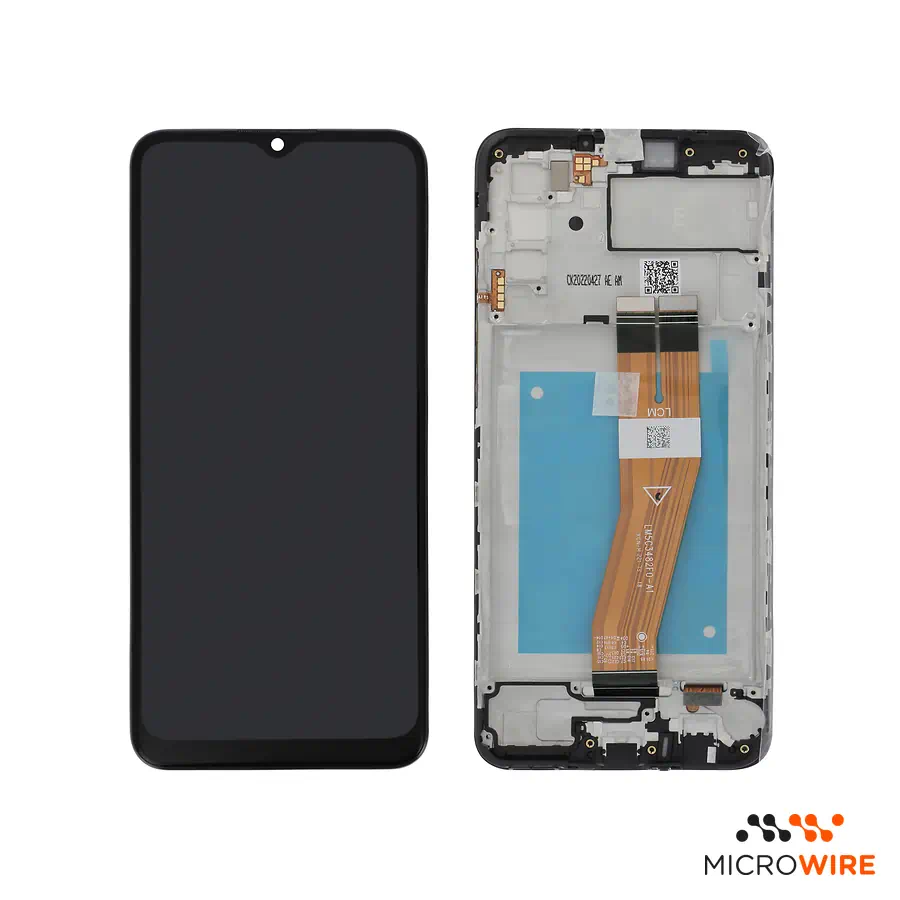

LCD Screen with Frame Samsung Galaxy A02S A025F Service Pack

LCD Screen with Frame for Samsung Galaxy A02s: Complete Restoration with Integrated Structure

This panel with chassis is intended for the replacement of the damaged display in the Samsung Galaxy A02s, being an original part commercialised in a sealed service packaging. The touch screen with frame allows a more precise and quick installation, dispensing with the direct gluing of the glass to the structure. It features LCD technology with uniform illumination and viewing angles faithful to the equipment.

Technical Specifications

• Part type: LCD screen with integrated rim
• Compatibility: Samsung Galaxy A02s (SM-A025F, SM-A025G, SM-A025M)
• Part code: GH81-20118A
• Technology: LCD
• Quality: Original — Service Pack
• Frame: Yes — screen mounted in the frame

When to Replace

• Front glass cracked or shattered after a drop
• LCD panel without image or with dark spots on the display
• Vertical or horizontal lines covering the image
• Touch that fails or does not respond in certain areas of the screen
• Irregular backlighting or totally blank screen — confirm the diagnosis

Notes for the Technician

• Test before applying: connect the screen to the equipment without gluing it and confirm image, touch across the entire area and brightness, keeping the protective films. Thus, if there is any problem, the return or guarantee is handled in a quick and simple way.
• Repair difficulty: Medium
• The process requires disassembling the back cover, plastic protections and disconnecting the battery before any other cable
• Necessary to transfer the main board, secondary charging board, interconnection flex cable, earpiece and vibration motor to the new chassis
• New adhesive for the back cover is sold separately
• Take extra care when unsticking the old battery so as not to pierce or deform it

What Distinguishes This Version

This is a Service Pack version manufactured by the brand, positioned at the top of the Micro Wire replacement parts hierarchy. It is the indicated option for professional technicians and users who intend to return the device to its authentic state without structural concessions.

Frequently Asked Questions

Does this screen already include the frame?
Yes, the display comes pre-mounted in the chassis of the Samsung Galaxy A02s, so the repair is done by transferring the internal components from the old part to this new structure without the need to glue the glass.

Is code GH81-20118A compatible with the SM-A025F variant?
Yes, this technical service reference of the brand was designed specifically for the Samsung Galaxy A02s variants, including the SM-A025F model.
