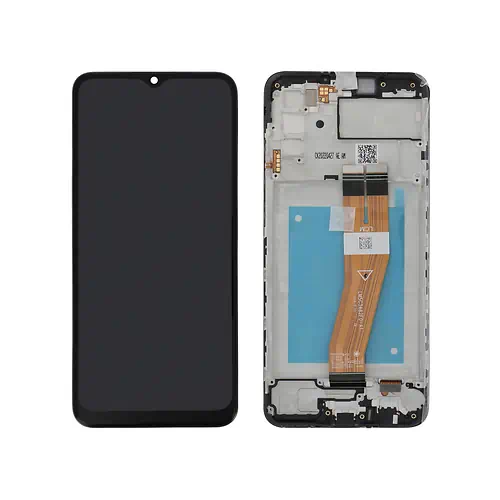

Screen with Frame Samsung Galaxy A02S Version G

Screen with Frame for Samsung Galaxy A02s: Complete Replacement with Chassis

This screen with frame allows you to restore the image and touch response of your Samsung Galaxy A02s version G. By integrating the panel directly into the mounting structure, this complete display simplifies technical repair and avoids the need for manual glass gluing.

Technical Specifications

• Part type: Touch screen and display mounted on frame
• Compatibility: Samsung Galaxy A02s (SM-A025G, SM-A025G/DS)
• Flex cable code: LM5C3487F0-A1
• Model reference: Version G (SM-A025G)
• Quality: OEM
• Frame: Yes — screen mounted on the frame

When to Replace

• Front glass broken or cracked after impact
• Screen completely dark or showing no image — confirm the diagnosis
• Black spots, vertical lines, or visual distortions on the panel
• Lack of touch response in isolated areas or across the entire display

Notes for the Technician

• Test before applying: connect the screen to the device without gluing it and confirm image, touch across the entire area, and brightness, keeping the protective films in place. Thus, if there is any issue, return or warranty is handled simply and quickly.
• Difficulty level: Medium.
• Disassemble the back cover and the intermediate bezel to access the main board and internal components.
• Transfer the main board, lower charging board, battery, earpiece, and buttons to the new structure.
• Check the reference of the previous flex cable (LM5C3487F0-A1) to ensure version match before final assembly.

What Distinguishes This Version

This is an OEM-grade part, designed according to the phone specifications to ensure a rigorous fit in the chassis. It is the suitable choice for technicians and professionals seeking installation agility and repair reliability without the need to glue the glass.

Frequently Asked Questions

How to confirm if this screen is compatible with my phone?
This model is specifically intended for the Samsung Galaxy A02s Version G variant (SM-A025G). You must check if the flex ribbon of the damaged screen shows the inscription LM5C3487F0-A1.

Is it necessary to use glue to install this screen?
It is not necessary to glue the glass panel, as the part already comes integrated into the chassis. However, if you need to fix the back cover or battery, suitable adhesive is sold separately.
